Spiral Modular

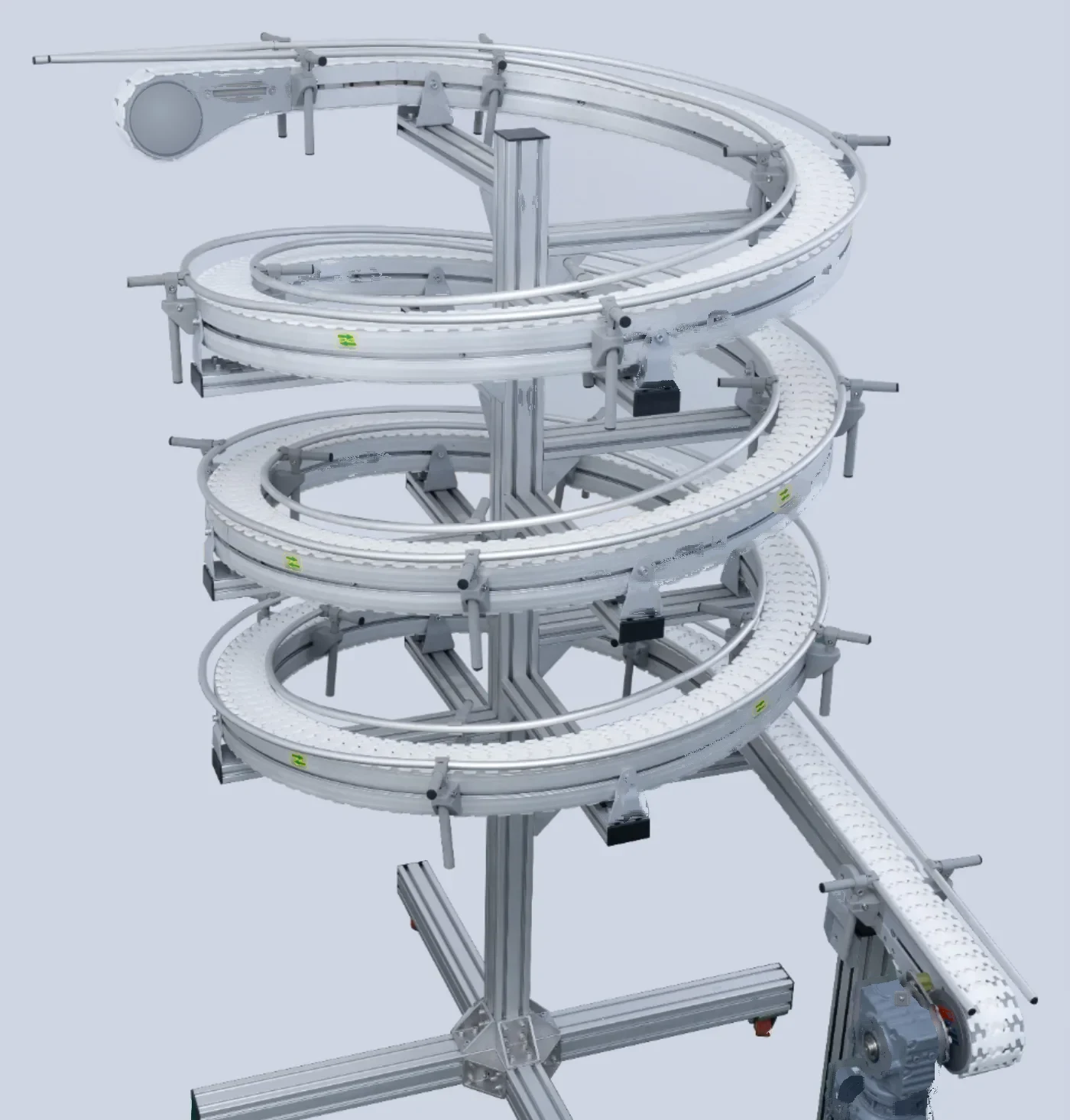

Spiral conveyor elevating product through multiple levels.
The Spiral Modular Conveyor is a vertical transportation solution engineered to move products across multiple levels within a minimal footprint. It uses a spiral modular belt mechanism to deliver smooth, consistent, and gentle product movement while prioritizing durability, hygiene, and low maintenance. The system is well suited to high-capacity production environments where space efficiency is critical, offering fully customizable configurations, quiet and stable performance, and high load-bearing capacity.
Also known as: spiral elevator conveyor, spiral conveyor, modular spiral conveyor, compact spiral conveyor.
- Family Modular Belt
- Series FlexiTrack Series
- Type code KFT-06
- Configuration Spiral, multi-level
- Construction Stainless steel 304 or aluminum
What is built into it
- 01
Versatile across multiple product types and industries
- 02
Enhanced operational efficiency
- 03
Minimal maintenance requirements
- 04
Extended operational lifespan
- 05
Hygienic construction standards
- 06
Space-efficient (compact footprint) design
- 07
Fully customizable configurations
- 08
Quiet and stable performance
- 09
High load-bearing capacity
- 10
Simple assembly with quick belt replacement
- 11
Bi-directional operation with right- or left-mounted motor
Standard ranges
Read these as the envelope, not a fixed configuration. Length, width, height, finish and drive are set per application on the GA drawing.
- Length
- 1-50 meters (customizable)
- Width
- 65 / 85 / 105 mm
- Height
- 2-5 meters (customizable)
- Belt type
- Modular belt
- Speed range
- 5-40 m/min (variable or fixed)
- Material options
- Stainless steel 304 or aluminum
- Surface finish
- Hard anodized, bead blasted, or matte
- Power supply
- Single-phase or 3-phase, 50 Hz
- Voltage options
- 220V or 415V
- Drive system
- Direct, chain, or belt drive
- Direction
- Bi-directional
- Motor position
- Right or left mounted
- Support
- Foot rest or tripod options
Where it runs
- Food processing
- Packaging
- Pharmaceuticals
- Assembly lines
- Material handling
- Airports
- Automotive manufacturing
- Cosmetics production
- E-commerce
- Electronics
- Food and beverages
- Warehousing
- Manufacturing facilities
- Waste management
- Handling boxes, bottles, grains, personal care items, sheet metal, vaccine bottles, blister packs, nuts, snacks, tablets, capsules, biscuits, and trays
Spiral Modular Conveyor, explained
What is a modular spiral conveyor?
A modular spiral conveyor raises or lowers product between levels on a modular plastic belt that runs in a continuous helix, so a climb of several metres takes little more floor space than the spiral itself. Because the belt is made of small interlocking modules, it follows the curve of the spiral without a transfer at each turn. The KFlexiTrack spiral lifts product 2 to 5 metres and runs in either direction, so one machine can carry product up a level or bring it back down.
What sizes and speeds does the spiral conveyor come in?
The belt is 65, 85 or 105 mm wide, and the conveying length runs from 1 to 50 metres, with the height set between 2 and 5 metres to the layout. Speed is 5 to 40 m/min, fixed or variable. It runs on single-phase or three-phase power at 220 V or 415 V, 50 Hz, through a direct, chain or belt drive, with the motor mounted on the right or the left.
What products can a spiral conveyor carry?
A spiral conveyor carries unit products that sit steadily on a flat modular belt: boxes, bottles and vaccine bottles, blister packs, tablets and capsules, biscuits, nuts, snacks, trays and personal care items. That puts it on food, pharmaceutical and cosmetics lines, and in e-commerce and warehousing, wherever product has to change level in a tight space.
What is the spiral conveyor built from?
The frame is stainless steel SS 304 or aluminium, finished hard-anodised, bead-blasted or matt, and it stands on foot rests or a tripod base. It assembles simply and the belt is quick to replace. Every spiral is fabricated in-house at the KFlexiTrack works in Ponda, Goa, India.
